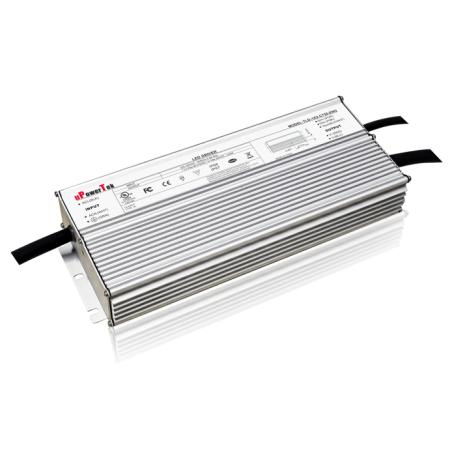

347Vac 480Vac LED Driver Features
- Supply Voltage: 180-528Vac covers 347Vac 380Vac and 480V
- Constant current output covers 160W to 800W
- Surge Immunity: 10kV
- 100,000Hour Life @ Tc=75℃
- 7 Year Warranty @ Tc<=75℃
- AirsetTM NFC Programmability
- +/-2% Output Current Accuracy
- 0-10V/PWM/Timer Dimmable
- Dim Off with 1.5W Standby Power
- 12V 300mA Auxiliary Power to Power Controllers and Fans.
- UL Class P, ENEC/CB/CCC SELV Output
- Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
160W LED Driver
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-160-C105-ERX | 160W | 0.7-1.05A | 91-229Vdc |
TLD-160-C140-ERX | 160W | 1.05-1.4A | 69-152Vdc |
TLD-160-C210-ERX | 160W | 1.4-2.1A | 46-114Vdc |
TLD-160-C420-ERX | 160W | 2.8-4.2A | 23-55Vdc |
TLD-160-C630-ERX | 160W | 4.4-6.3A | 15-36Vdc |
200W LED Driver
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-200-C105-ERX | 200W | 0.7-1.05A | 114-286Vdc |
TLD-200-C140-ERX | 200W | 1.05-1.4A | 86-190Vdc |
TLD-200-C210-ERX | 200W | 1.4-2.1A | 57-143Vdc |
TLD-200-C420-ERX | 200W | 2.8-4.2A | 29-71Vdc |
TLD-200-C630-ERX | 200W | 4.4-6.3A | 19-45Vdc |
240W LED Driver
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-240-C105-ERX | 250W | 0.7-1.05A | 143-305Vdc |
TLD-240-C140-ERX | 250W | 1.05-1.4A | 107-238Vdc |
TLD-240-C210-ERX | 250W | 1.4-2.1A | 71-179Vdc |
TLD-240-C420-ERX | 250W | 2.8-4.2A | 36-89Vdc |
TLD-240-C690-ERX | 250W | 4.5-6.9A | 22-56Vdc |
320W LED Driver
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-320-C140-ERX | 320W | 1.05-1.4A | 137-305Vdc |
TLD-320-C210-ERX | 320W | 1.4-2.1A | 91-229Vdc |
TLD-320-C420-ERX | 320W | 2.8-4.2A | 46-114Vdc |
TLD-320-C700-ERX | 320W | 5-7A | 27-64Vdc |
400W LED Driver
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-400-C210-ERX | 400W | 1.4-2.1A | 114-286Vdc |
TLD-400-C420-ERX | 400W | 2.8-4.2A | 57-143Vdc |
TLD-400-C990-ERX | 400W | 6.9-9.9A | 24-58Vdc |
600W LED Driver
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-600-C14A-ERX | 600W | 11-14A | 30-55Vdc |
TLD-600-C860-ERX | 600W | 6-8.6A | 42-100Vdc |
TLD-600-C600-ERX | 600W | 4.2-6A | 60-143Vdc |
TLD-600-C420-ERX | 600W | 2.8-4.2A | 86-214Vdc |
700W LED Driver
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-700-C16A-ERX | 700W | 12.5-16A | 30-56Vdc |
TLD-700-C860-ERX | 700W | 6-8.6A | 49-118Vdc |
TLD-700-C600-ERX | 700W | 4.2-6A | 71-169Vdc |
TLD-700-C420-ERX | 700W | 3.2-4.2A | 100-219Vdc |
800W LED Driver
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-800-C18A-ERX | 800W | 14.5-18A | 30-56Vdc |
TLD-800-C860-ERX | 800W | 6-8.6A | 56-133Vdc |
TLD-800-C600-ERX | 800W | 4.2-6A | 80-190Vdc |
TLD-800-C420-ERX | 800W | 3.6-4.2A | 114-222Vdc |
TYKT Triple Output
180-528Vac Input
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TYKT600-C070-XYC | 200Wx3 | 0.4-0.7A | 171-500Vdc |
TYKT900-C105-XYC | 300Wx3 | 0.6-1.05A | 171-500Vdc |
TYKT1K2-C105-XYC | 400Wx3 | 0.8-1.05A | 229-500Vdc |
TYKT1K2-C140-XYC | 400Wx3 | 1.05-1.4A | 171-381Vdc |
TYKT1K5-C140-XYC | 500Wx3 | 1-1.4A | 214-500Vdc |
TYKT1K5-C210-XYC | 500Wx3 | 1.4-2.1A | 143-357Vdc |
TYKT1K8-C170-XYC | 600Wx3 | 1.2-1.7A | 212-500Vdc |
TYKT1K8-C210-XYC | 600Wx3 | 1.7-2.1A | 171-353Vdc |
TYKT2K0-C190-XYC | 666Wx3 | 1.3-1.9A | 212-500Vdc |
TYKQ Quad Output
180-528Vac Input
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TYKQ600-C050-XYC | 150Wx4 | 0.3-0.5A | 180-500Vdc |
TYKQ800-C070-XYC | 200Wx4 | 0.4-0.7A | 171-500Vdc |
TYKQ1K0-C090-XYC | 250Wx4 | 0.5-0.9A | 167-500Vdc |
TYKQ1K2-C105-XYC | 300Wx4 | 0.6-1.05A | 171-500Vdc |
TYKQ1K6-C105-XYC | 400Wx4 | 0.8-1.05A | 229-500Vdc |
TYKQ1K6-C140-XYC | 400Wx4 | 1.05-1.4A | 171-381Vdc |
TYKQ2K0-C140-XYC | 500Wx4 | 1-1.4A | 214-500Vdc |
TYKQ2K0-C210-XYC | 450Wx4 | 1.4-2.1A | 143-357Vdc |
Title | |||
---|---|---|---|
TYKQ1K6-C Quad Output Driver Rev F.pdf 1 file(s) 50 downloads |
1600W |
September 20, 2024 | Download |
TYKQ2K0-C Quad Output Driver Rev F.pdf 1 file(s) 63 downloads |
2000W |
September 20, 2024 | Download |
TYKT1K5-C Triple Output Driver Rev F.pdf 1 file(s) 51 downloads |
1500W |
September 20, 2024 | Download |
TYKT1K8-C Triple Output Driver Rev F.pdf 1 file(s) 41 downloads |
1800W |
September 20, 2024 | Download |
TYKT2K0-C Triple Output Driver Rev E.pdf 1 file(s) 50 downloads |
2000W |
September 20, 2024 | Download |
TYKQ1K0-C Quad Output Driver Rev B.pdf 1 file(s) 99 downloads |
1000W |
August 23, 2024 | Download |
TYKQ1K2-C Quad Output Driver Rev C.pdf 1 file(s) 106 downloads |
1200W |
August 23, 2024 | Download |
TYKQ600-C Quad Output Driver Rev D.pdf 1 file(s) 93 downloads |
600W |
August 23, 2024 | Download |
TYKQ800-C Quad Output Driver Rev E.pdf 1 file(s) 70 downloads |
800W |
August 23, 2024 | Download |
TYKT1K2-C Triple Output Driver Rev D.pdf 1 file(s) 98 downloads |
1200W |
August 23, 2024 | Download |
TYKT600-C Triple Output Driver Rev E.pdf 1 file(s) 72 downloads |
600W |
August 23, 2024 | Download |
TYKT900-C Triple Output Driver Rev E.pdf 1 file(s) 60 downloads |
900W |
August 23, 2024 | Download |
TLD-160-C Rev G.pdf 1 file(s) 26 downloads |
160W |
August 15, 2024 | Download |
TLD-200-C Rev G.pdf 1 file(s) 15 downloads |
200W |
August 15, 2024 | Download |
TLD-240-C Rev G.pdf 1 file(s) 17 downloads |
250W |
August 15, 2024 | Download |
TLD-320-C Rev G.pdf 1 file(s) 27 downloads |
320W |
August 15, 2024 | Download |
TLD-400-C Rev G.pdf 1 file(s) 13 downloads |
400W |
August 15, 2024 | Download |
TLD-480-C Rev F.pdf 1 file(s) 18 downloads |
480W |
August 15, 2024 | Download |
TLD-600-C Rev M.pdf 1 file(s) 34 downloads |
600W |
August 15, 2024 | Download |
TLD-610-C Rev E.pdf 1 file(s) 41 downloads |
610W |
August 15, 2024 | Download |
TLD-700-C Rev K.pdf 1 file(s) 25 downloads |
700W |
August 15, 2024 | Download |
TLD-710-C Rev E.pdf 1 file(s) 36 downloads |
710W |
August 15, 2024 | Download |
TLD-800-C Rev O.pdf 1 file(s) 36 downloads |
800W |
August 15, 2024 | Download |
TLD-810-C Rev E.pdf 1 file(s) 26 downloads |
810W |
August 15, 2024 | Download |
