Hot Selling Grow Lighting Drivers
Product Features
- Absolute Supply Voltage: 200-528Vac or 250-740Vdc
- Great Surge Immunity 10kV
- 96% Efficiency Max.
- Customized Endcap
- Low Inrush Current
- Active Daisy Chain and Master Mode
- 100,000Hour Life @ Tc=75℃
- 7 Year Warranty @ Tc<=75℃
- AirsetTM NFC Programmability
- +/-2% Output Current Accuracy
- Isolated 0-10V/PWM/Time/DALI2.0 Dimmable
- Dim Off with 1.5W Standby Power
- 12V 300mA Auxiliary Power to Power Controllers and Fans (Optional)
- UL Class P, ENEC/CB/CCC SELV Output
- Global Certified Model Available
- Safety according to EN 61347-1, 61347-2-13, 62384

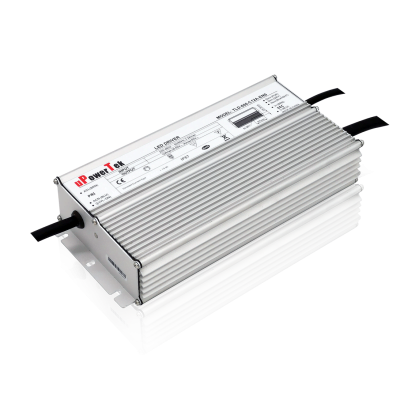

120-277Vac Input Horticulture Lighting LED Drivers
Square Shape
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
BLD-600-C14A-XYZ | 600W | 11-14A | 30-55Vdc |
BLD-700-C16A-XYZ | 700W | 12.5-16A | 30-56Vdc |
BLD-800-C18A-XYZ | 800W | 14.5-18A | 30-56Vdc |
BLD-900-C18A-XYZ | 900W | 16.5-18A | 30-55Vdc |
Slim Line
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
BLD-320-C700-XYZ | 320W | 5-7A | 27-64Vdc |
BLD-400-C990-XYZ | 400W | 6.9-9.9A | 24-58Vdc |
BLD-500-C11A-XYZ | 500W | 9.1.1A | 27-56Vdc |
BLD-610-C14A-XYZ | 610W | 11-14A | 30-55Vdc |
BLD-710-C16A-XYZ | 710W | 12.5-16A | 30-55Vdc |
BLD-810-C18A-XYZ | 810W | 14.5-18A | 30-56Vdc |
BLD-1K1-C21A-XYZ | 1000W | 18-21A | 30-55Vdc |
200-480Vac Input Horticulture Lighting LED Drivers
Square Shape
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-600-C14A-XYZ | 600W | 11-14A | 30-55Vdc |
TLD-700-C16A-XYZ | 700W | 12.5-16A | 30-56Vdc |
TLD-800-C18A-XYZ | 800W | 14.5-18A | 30-56Vdc |
Slim Line
Model Number | Output Power | Output Current | Output Voltage |
---|---|---|---|
TLD-320-C700-XYZ | 320W | 5-7A | 27-64Vdc |
TLD-400-C990-XYZ | 400W | 6.9-9.9A | 24-58Vdc |
TLD-480-C11A-XYZ | 480W | 9-1.1A | 26-54Vdc |
TLD-610-C14A-XYZ | 610W | 11-14A | 30-55Vdc |
TLD-710-C16A-XYZ | 710W | 12.5-16A | 30-56Vdc |
TLD-810-C18A-XYZ | 810W | 14.5-18A | 30-56Vdc |
120-277Vac Input Tunable Spectrum LED Driver
BLD-400-C990-ENV
#abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 400W | 120-277Vac | 6.9-9.9A | 30 – 58Vdc |
2 | P2: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
BLD-500-C11A-ENV
#abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 500W | 120-277Vac | 9-11A | 30 – 56Vdc |
2 | P2: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
BLD-610-C14A-ENV
#abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 610W | 120-277Vac | 11-14A | 30 – 55Vdc |
2 | P2: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
BLD-710-C16A-ENV
#abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 710W | 120-277Vac | 12.5-16A | 30 – 56Vdc |
2 | P2: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
BLD-810-C18A-ENV
#abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 810W | 120-277Vac | 14.5-18A | 30 – 55Vdc |
2 | P2: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
BLD-1K1-C21A-ENV #abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 1000W | 120-277Vac | 18-21A | 30 – 55Vdc |
2 | P2: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 120-277Vac | 1.95-3A | 15 – (VCH1-4V) |
200-480Vac Input Tunable Spectrum LED Driver
TLD-400-C990-ENV #abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 400W | 200-480Vac | 6.9-9.9A | 30 – 58Vdc |
2 | P2: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
TLD-480-C11A-ENV #abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 400W | 200-480Vac | 9-11A | 30 – 53Vdc |
2 | P2: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
TLD-610-C14A-ENV #abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 610W | 200-480Vac | 11-14A | 30 – 55Vdc |
2 | P2: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
TLD-710-C16A-ENV #abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 710W | 200-480Vac | 12.5-16A | 30 – 55Vdc |
2 | P2: 100W | 200-480Vac | 2.1-3A | 22 – (VCH1-8V) |
3 | P3: 100W | 200-480Vac | 2.1-3A | 22 – (VCH1-8V) |
4 | P4: 100W | 200-480Vac | 2.1-3A | 22 – (VCH1-8V) |
TLD-810-C18A-ENV #abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 810W | 200-480Vac | 14.5-18A | 30 – 55Vdc |
2 | P2: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
TLD-1K1-C21A-ENV #abcdTS
Output Channel | Max Output Power | Input Voltage | Output Current | Output Voltage |
---|---|---|---|---|
1 | P1: 1000W | 200-480Vac | 18-21A | 30 – 55Vdc |
2 | P2: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
3 | P3: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
4 | P4: 100W | 200-480Vac | 1.95-3A | 15 – (VCH1-4V) |
Title | |||
---|---|---|---|
BLD-040-C -A00000 Rev H.pdf 1 file(s) 221 downloads |
40W |
August 16, 2024 | Download |
BLD-060-C -A00000 Rev H.pdf 1 file(s) 176 downloads |
60W |
August 16, 2024 | Download |
BLD-075-C -A00000 Rev H.pdf 1 file(s) 128 downloads |
75W |
August 16, 2024 | Download |
BLD-096-C -A00000 Rev I.pdf 1 file(s) 171 downloads |
96W |
August 16, 2024 | Download |
BLD-120-C -A00000 Rev H.pdf 1 file(s) 121 downloads |
120W |
August 16, 2024 | Download |
BLD-120-C -NVA000 Rev F.pdf 1 file(s) 130 downloads |
120W |
August 16, 2024 | Download |
BLD-150-C -A00000 Rev H.pdf 1 file(s) 128 downloads |
150W |
August 16, 2024 | Download |
BLD-1K0-C Rev B.pdf 1 file(s) 142 downloads |
1000W |
August 16, 2024 | Download |
BLD-1K1-C Rev G.pdf 1 file(s) 108 downloads |
1000W |
August 16, 2024 | Download |
BLD-200-C -A00000 Rev H.pdf 1 file(s) 155 downloads |
200W |
August 16, 2024 | Download |
BLD-240-C -A00000 Rev H.pdf 1 file(s) 158 downloads |
240W |
August 16, 2024 | Download |
BLD-320-C -A00000 Rev H.pdf 1 file(s) 150 downloads |
320W |
August 16, 2024 | Download |
BLD-400-C -A00000 Rev H.pdf 1 file(s) 117 downloads |
400W |
August 16, 2024 | Download |
BLD-500-C Rev G.pdf 1 file(s) 143 downloads |
500W |
August 16, 2024 | Download |
BLD-600-C -NV0000 Rev E.pdf 1 file(s) 110 downloads |
600W |
August 16, 2024 | Download |
BLD-600-C Rev K.pdf 1 file(s) 139 downloads |
600W |
August 16, 2024 | Download |
BLD-610-C Rev J.pdf 1 file(s) 91 downloads |
610W |
August 16, 2024 | Download |
BLD-700-C Rev L.pdf 1 file(s) 109 downloads |
700W |
August 16, 2024 | Download |
BLD-710-C Rev K.pdf 1 file(s) 121 downloads |
710W |
August 16, 2024 | Download |
BLD-800-C Rev L.pdf 1 file(s) 123 downloads |
800W |
August 16, 2024 | Download |
BLD-810-C Rev K.pdf 1 file(s) 107 downloads |
810W |
August 16, 2024 | Download |
BLD-900-C Rev E.pdf 1 file(s) 125 downloads |
900W |
August 16, 2024 | Download |
BLD-1K1-C#abcdTS Tunable Spectrum Driver Rev E.pdf 1 file(s) 62 downloads |
1000W |
August 15, 2024 | Download |
BLD-400-C#abcdTS Tunable Spectrum Driver Rev F.pdf 1 file(s) 29 downloads |
400W |
August 15, 2024 | Download |
BLD-500-C#abcdTS Tunable Spectrum Driver Rev F.pdf 1 file(s) 51 downloads |
500W |
August 15, 2024 | Download |
BLD-610-C#abcdTS Tunable Spectrum Driver Rev E.pdf 1 file(s) 41 downloads |
610W |
August 15, 2024 | Download |
BLD-710-C#abcdTS Tunable Spectrum Driver Rev E.pdf 1 file(s) 78 downloads |
710W |
August 15, 2024 | Download |
BLD-810-C#abcdTS Tunable Spectrum Driver Rev E.pdf 1 file(s) 44 downloads |
810W |
August 15, 2024 | Download |
TLD-1K1-C#abcdTS Tunable Spectrum Driver Rev C.pdf 1 file(s) 55 downloads |
1000W |
August 15, 2024 | Download |
TLD-400-C#abcdTS Tunable Spectrum Driver Rev C.pdf 1 file(s) 64 downloads |
400W |
August 15, 2024 | Download |
TLD-480-C#abcdTS Tunable Spectrum Driver Rev C.pdf 1 file(s) 45 downloads |
480W |
August 15, 2024 | Download |
TLD-610-C#abcdTS Tunable Spectrum Driver Rev C.pdf 1 file(s) 32 downloads |
610W |
August 15, 2024 | Download |
TLD-710-C#abcdTS Tunable Spectrum Driver Rev B.pdf 1 file(s) 41 downloads |
710W |
August 15, 2024 | Download |
TLD-810-C#abcdTS Tunable Spectrum Driver Rev C.pdf 1 file(s) 49 downloads |
810W |
August 15, 2024 | Download |
TLD-160-C Rev G.pdf 1 file(s) 30 downloads |
160W |
August 15, 2024 | Download |
TLD-200-C Rev G.pdf 1 file(s) 19 downloads |
200W |
August 15, 2024 | Download |
TLD-240-C Rev G.pdf 1 file(s) 19 downloads |
250W |
August 15, 2024 | Download |
TLD-320-C Rev G.pdf 1 file(s) 31 downloads |
320W |
August 15, 2024 | Download |
TLD-400-C Rev G.pdf 1 file(s) 18 downloads |
400W |
August 15, 2024 | Download |
TLD-480-C Rev F.pdf 1 file(s) 20 downloads |
480W |
August 15, 2024 | Download |
TLD-600-C Rev M.pdf 1 file(s) 40 downloads |
600W |
August 15, 2024 | Download |
TLD-610-C Rev E.pdf 1 file(s) 46 downloads |
610W |
August 15, 2024 | Download |
TLD-700-C Rev K.pdf 1 file(s) 30 downloads |
700W |
August 15, 2024 | Download |
TLD-710-C Rev E.pdf 1 file(s) 44 downloads |
710W |
August 15, 2024 | Download |
TLD-800-C Rev O.pdf 1 file(s) 39 downloads |
800W |
August 15, 2024 | Download |
TLD-810-C Rev E.pdf 1 file(s) 30 downloads |
810W |
August 15, 2024 | Download |
How to choose right LED drivers for grow lighting?
There are several factors needs to be considered when choosing suitable LED drivers for horticulture lighting
- Choose the right power for the light fixtures.
- Choose the right input voltage for light fixtures.
- Higher efficiency drivers result in higher light efficacy and longer life.
- Choose Single high power driver. Higher efficiency, Simplicity of internal wiring during manufacturing, Doubling or tripling the failure rates, Low inrush current.
LED Driver Solutions for Horticulture Lighting
Upowertek unique product features could help grow lights manufacturers win more customers.
- Upowertek provides 2 versions input voltages: 120-277Vac and 200-480Vac, and this full range covers most of the power grids in the world.
- The efficiency is extremely high up to 95.5%. The high efficiency results in the high light efficacy of the grow lights thus saves a lot of money for end customers.
- Extremely low inrush current. The standard version of 400-800W driver has only less than 20A so as to ease the selection of circuit breakers for existing systems.
- Great dimming performance. Dimmed down to 10% smoothly without any flickering.
- Full range and choices of output. Output power ranges from 100Watt to 800Watt.
- Ground cable at the output which makes the usage safer, and it is certified by UL Class P.
- High Reliability and long life time up to 100khours.
Miscellaneous Choices

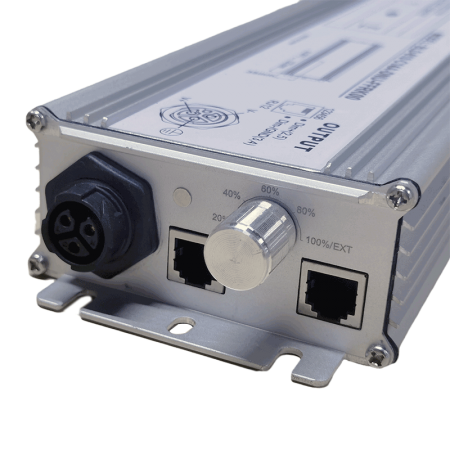

Upowertek provides full options for different grow light connections and control schemes.
Options for Connection | Industrial Choices IP66 | Consumer Choices IP20 |
---|---|---|
Input | Cable Waterproof Connector | C14 Plug |
Output | Cable Waterproof Connector | |
Dimming Control | Cable Waterproof Connector | RJ12 x 2 Knob |
Lead Time
- Samples: 2 or 3 days usually. It takes more time if there is any customization requirement, such as private label.
- Volume orders: 3 to 4 weeks usually.
- Shipping time: It takes about 3 to 5 days to ship by express,such as DHL or UPS, and it’s around 2 to 4 weeks by Sea.
- Guarantee: Upowertek has an efficient team to process your orders, we try everything to short the lead time. Even under shortage of raw materials this year, we stocked enough components to meet our customer’s demand for lead time. For some top urgent projects, we have special team to ensure everything is on schedule.
7 to 10 Year Warranty
- Upowertek has strong R&D team, strict process and professional factory to ensure high quality of the LED drivers.
- Experienced Engineers
- Strict Process
- Qualified Components
- Adequate Design Margin
- Strict Verification Hardware System
Tell us your requirements
uPowerTek has a flexible sales strategy on grow light market, and we also would like to listen to our customer’s suggestions to optimize our products. A strong R&D team is ready to turn your idea into real products.
Meet Our Team
A professional team is always ready to deal with your requirements! The company’s core team is a group of senior engineers who have been deeply involved in the lighting and switching power supply industry for many years.
