Hot Selling DALI LED Drivers
These DALI LED drivers can be applied to indoor or outdoor lighting projects. BLD series has IP67 waterproof function, BSR series has slim line size and can be built-in linear lamps.
Product Features
- Absolute Supply Voltage: 100-305Vac
- Horticultural Customized Endcap
- 95% Efficiency Max.
- Low Inrush Current
- Programmable Hot Swap
- 100,000Hour Life @ Tc=75℃
- 7 Year Warranty @ Tc<=75℃
- NFC or Cable Programmability and Isolated Dimming
- +/-2% Output Current Accuracy
- Isolated 0-10V/PWM/Time/DALI2.0/ DMX/RDM Dimmable
- Dim Off with 0.5W Standby Power
- 12V 300mA Auxiliary Power to Power Controllers and Fans
- UL Class P, ENEC/CB/CCC SELV Output
- Global Certified Model Available
Safety according to EN 61347-1, 61347-2-3,61347-2-13, 623847
Why DALI-2
There is fewer compatibility issue for DALI-2 products
- Simpler wiring – one line for lighting, emergency, switches and sensors
- Endorsed & compliant switch and sensor devices
- Cross manufacture compatibility
- Lower over-all costs
- Published under IEC 62386
- Certification of the control system component
How to choose DALI drivers?
- Confirm with the suppliers whether it’s DALI 1 or DALI 2 drivers.
- Choose the correct DALI protocol for your application. The standard DALI protocol for LED driver is DALI 101, 102 and 207.
- If you have other DC input controllers in the system, then you need drivers have 24V auxiliary power supply, which means that the driver should meeet DALI 150 item.
- If the projects needs D4i function, then the DALI drivers should meet DALI 250, 251, 252 and 253 Standard.
- Test a sample first. Because the driver may not be compatible with your DALI master, it’s better to test the DALI driver with your DALI master together.
- Building a small system before installation. If there are different kinds of sensors, controller and drivers in the system, please be sure to test the compatability performance before installing all of them to the buildings.
Contents of the book
- What is DALI
- How Does A DALI Lighting Systems Work
- How is DALI System Wired
- Pros and Cons of DALI Dimming
- Difference between DALI and DALI-2
- Why DALI-2
- What is D4i
- Difference among DALI, DALI -2 and D4i
- What is DT8
- Difference between DALI DT8 and DT6
Download PDF Book
To help you better understand DALI dimming technology, we created a 40 page PDF book. It was prepared by our experienced DALI engineers and product managers. You can get it free today just by putting your E-mail here.
DALI LED Driver Products Range
BLD Series DALI LED Drivers
Supply Voltage: 90-305Vac, IP67 Waterproof, NFC Programmable, DALI 2 dimming, Isolated Dimming, constant current output 40W, 60W, 75W, 96W, 150W, 200W, 240W, 320W, 400W, 600W, 800W.
| Title | |||
|---|---|---|---|
|
BLD-1K1-C Rev H 1 file(s) 753 downloads |
1000W |
June 29, 2026 | Download |
|
BLD-040-C -A00000 Rev H.pdf 1 file(s) 1764 downloads |
40W |
January 10, 2025 | Download |
|
BLD-060-C -A00000 Rev H.pdf 1 file(s) 1626 downloads |
60W |
January 10, 2025 | Download |
|
BLD-075-C -A00000 Rev H.pdf 1 file(s) 1368 downloads |
75W |
January 10, 2025 | Download |
|
BLD-096-C -A00000 Rev I.pdf 1 file(s) 1751 downloads |
96W |
January 10, 2025 | Download |
|
BLD-120-C -A00000 Rev H.pdf 1 file(s) 1364 downloads |
120W |
January 14, 2025 | Download |
|
BLD-120-C -NVA000 Rev F.pdf 1 file(s) 1719 downloads |
120W |
January 14, 2025 | Download |
|
BLD-150-C -A00000 Rev H.pdf 1 file(s) 1855 downloads |
150W |
January 14, 2025 | Download |
|
BLD-1K0-C Rev B.pdf 1 file(s) 1072 downloads |
1000W |
January 14, 2025 | Download |
|
BLD-200-C -A00000 Rev H.pdf 1 file(s) 1530 downloads |
200W |
January 14, 2025 | Download |
|
BLD-240-C -A00000 Rev H.pdf 1 file(s) 1895 downloads |
240W |
January 14, 2025 | Download |
|
BLD-320-C -A00000 Rev H.pdf 1 file(s) 1389 downloads |
320W |
January 14, 2025 | Download |
|
BLD-400-C -A00000 Rev H.pdf 1 file(s) 1306 downloads |
400W |
January 14, 2025 | Download |
|
BLD-500-C Rev G.pdf 1 file(s) 1202 downloads |
500W |
January 14, 2025 | Download |
|
BLD-600-C -NV0000 Rev E.pdf 1 file(s) 1085 downloads |
600W |
January 14, 2025 | Download |
|
BLD-600-C Rev K.pdf 1 file(s) 1156 downloads |
600W |
January 14, 2025 | Download |
|
BLD-610-C Rev J.pdf 1 file(s) 1062 downloads |
610W |
January 14, 2025 | Download |
|
BLD-700-C Rev L.pdf 1 file(s) 1151 downloads |
700W |
January 14, 2025 | Download |
|
BLD-710-C Rev K.pdf 1 file(s) 1225 downloads |
710W |
January 14, 2025 | Download |
|
BLD-800-C Rev L.pdf 1 file(s) 1152 downloads |
800W |
January 14, 2025 | Download |
|
BLD-810-C Rev K.pdf 1 file(s) 1037 downloads |
810W |
January 14, 2025 | Download |
|
BLD-900-C Rev E.pdf 1 file(s) 1312 downloads |
900W |
January 14, 2025 | Download |
APD Series DALI LED Drivers
Supply Voltage: 176-264Vac, DALI-2 and D4i dimming, IP20, Dim Off with 0.5W Standby Power, 24V 3W (10W Transient Peak) Auxiliary Power, constant current output , 40W, 75W, 110W, 165W and 200W.
| Title | |||
|---|---|---|---|
|
APD-025-C Rev E.pdf 1 file(s) 632 downloads |
25W |
January 14, 2025 | Download |
|
APD-040-C Rev G.pdf 1 file(s) 602 downloads |
40W |
January 14, 2025 | Download |
|
APD-075-C Rev G.pdf 1 file(s) 609 downloads |
75W |
January 14, 2025 | Download |
|
APD-110-C Rev G.pdf 1 file(s) 725 downloads |
110W |
January 14, 2025 | Download |
|
APD-165-C Rev G.pdf 1 file(s) 590 downloads |
165W |
January 14, 2025 | Download |
|
APD-200-C Rev G.pdf 1 file(s) 686 downloads |
200W |
January 14, 2025 | Download |
TLD Series DALI LED Drivers
Supply Voltage: 180-528Vac, IP67 Waterproof, NFC Programmable, DALI dimming, Isolated Dimming, constant current output, 160Watt, 200W, 240W, 320W, 400W, 480W, 600W, 800W.
| Title | |||
|---|---|---|---|
|
TLD-240-C Rev H.pdf 1 file(s) 768 downloads |
240W |
June 5, 2026 | Download |
|
TLD-1K2-C Rev C.pdf 1 file(s) 700 downloads |
1200W |
May 28, 2026 | Download |
|
TLD-160-C Rev G.pdf 1 file(s) 606 downloads |
160W |
January 14, 2025 | Download |
|
TLD-200-C Rev G.pdf 1 file(s) 591 downloads |
200W |
January 14, 2025 | Download |
|
TLD-320-C Rev G.pdf 1 file(s) 651 downloads |
320W |
January 14, 2025 | Download |
|
TLD-400-C Rev G.pdf 1 file(s) 554 downloads |
400W |
January 14, 2025 | Download |
|
TLD-480-C Rev F.pdf 1 file(s) 608 downloads |
480W |
January 14, 2025 | Download |
|
TLD-600-C Rev M.pdf 1 file(s) 642 downloads |
600W |
January 14, 2025 | Download |
|
TLD-610-C Rev E.pdf 1 file(s) 885 downloads |
610W |
January 14, 2025 | Download |
|
TLD-700-C Rev K.pdf 1 file(s) 961 downloads |
700W |
January 14, 2025 | Download |
|
TLD-710-C Rev E.pdf 1 file(s) 691 downloads |
710W |
January 14, 2025 | Download |
|
TLD-800-C Rev O.pdf 1 file(s) 922 downloads |
800W |
January 14, 2025 | Download |
|
TLD-810-C Rev E.pdf 1 file(s) 684 downloads |
810W |
January 14, 2025 | Download |
BSR Series DALI LED Drivers
Supply Voltage: 90-305Vac, PWM Output Frequency >1kHz, 2% DALI 2.0 Dimmable (0.1% Optional), Linear shape. 55W and 80W 24Vdc constant voltage output.
| Title | |||
|---|---|---|---|
|
BSR-030-V Rev G.pdf 1 file(s) 547 downloads |
30W |
January 14, 2025 | Download |
|
BSR-080-V Rev G.pdf 1 file(s) 573 downloads |
80W |
January 14, 2025 | Download |
|
BSR-055-V Rev G.pdf 1 file(s) 523 downloads |
55W |
January 14, 2025 | Download |
|
BSR-080-V Rev G.pdf 1 file(s) 627 downloads |
80W |
January 14, 2025 | Download |
BLD Series CV DALI LED Drivers
Supply Voltage: 90-305Vac, IP67 Waterproof, DALI 2.0 dimming, PWM output, constant voltage output 60W, 75W, 96W, 150W, 200W, 240W, 320W 400W, 480W.
| Title | |||
|---|---|---|---|
|
BLD-800-V Rev G 1 file(s) 526 downloads |
800W |
July 1, 2026 | Download |
|
BLD-096-V Rev L.pdf 1 file(s) 796 downloads |
96W |
August 11, 2025 | Download |
|
BLD-120-V Rev L.pdf 1 file(s) 829 downloads |
120W |
August 11, 2025 | Download |
|
BLD-1K1-V Rev B.pdf 1 file(s) 821 downloads |
1000W |
April 23, 2026 | Download |
|
BLD-500-V Rev F .pdf 1 file(s) 648 downloads |
500W |
January 14, 2025 | Download |
|
BLD-600-V Rev F.pdf 1 file(s) 809 downloads |
600W |
January 14, 2025 | Download |
|
BLD-060-V Rev I.pdf 1 file(s) 783 downloads |
60W |
January 14, 2025 | Download |
|
BLD-075-V Rev L.pdf 1 file(s) 901 downloads |
75W |
January 14, 2025 | Download |
|
BLD-096-V -NV0000 Rev F.pdf 1 file(s) 844 downloads |
96W |
January 14, 2025 | Download |
|
BLD-120-V -NV0000 Rev F.pdf 1 file(s) 926 downloads |
120W |
January 14, 2025 | Download |
|
BLD-150-V Rev L.pdf 1 file(s) 987 downloads |
150W |
January 14, 2025 | Download |
|
BLD-200-V Rev K.pdf 1 file(s) 863 downloads |
200W |
January 14, 2025 | Download |
|
BLD-240-V Rev I.pdf 1 file(s) 860 downloads |
240W |
January 14, 2025 | Download |
|
BLD-320-V Rev I.pdf 1 file(s) 681 downloads |
320W |
January 14, 2025 | Download |
|
BLD-350-V Rev F.pdf 1 file(s) 807 downloads |
350W |
January 14, 2025 | Download |
|
BLD-400-V Rev P.pdf 1 file(s) 800 downloads |
400W |
January 14, 2025 | Download |
Lead Time
- Samples: 2 or 3 days usually. It takes more time if there is any customization requirement, such as private label.
- Volume orders: 3 to 4 weeks usually.
- Shipping time: It takes about 3 to 5 days to ship by express,such as DHL or UPS, and it’s around 2 to 4 weeks by Sea.
- Guarantee: Upowertek has an efficient team to process your orders, we try everything to short the lead time. Even under shortage of raw materials this year, we stocked enough components to meet our customer’s demand for lead time. For some top urgent projects, we have special team to ensure everything is on schedule.
7 to 10 Year Warranty
Upowertek has strong R&D team, strict process and professional factory to ensure high quality of the LED drivers.
- Experienced Engineers
- Strict Process
- Qualified Components
- Adequate Design Margin
- Strict Verification Hardware System
DiiA Member
We are members of the Digital Illumination Interface Alliance(DiiA).
The Digital Illumination Interface Alliance (DiiA) is an open, global consortium of lighting companies that aims to grow the market for lighting-control solutions based on Digital Addressable Lighting Interface (DALI) technology. It is the basis of the DALI international authentication standard IEC 62386, in order to enhance the global lighting dimming control solutions to the market purpose.

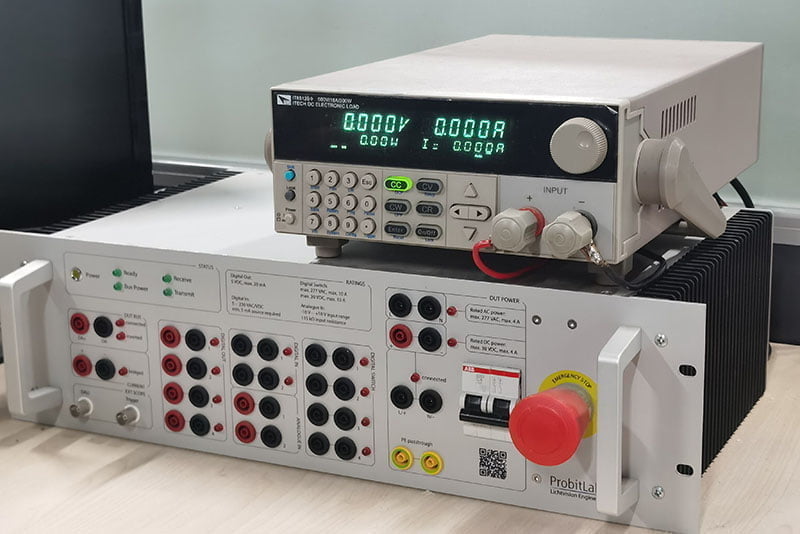

DALI Test Lab
Upowertek has the professional DALI test equipment Probit to make sure that our DALI drivers comply with the DALI IEC62386 standard.
Tell us your requirements
uPowerTek has a flexible sales strategy on grow light market, and we also would like to listen to our customer’s suggestions to optimize our products. A strong R&D team is ready to turn your idea into real products.
Meet Our Team
A professional team is always ready to deal with your requirements! The company’s core team is a group of senior engineers who have been deeply involved in the lighting and switching power supply industry for many years.
