Hot Selling 0.1% LED Drivers

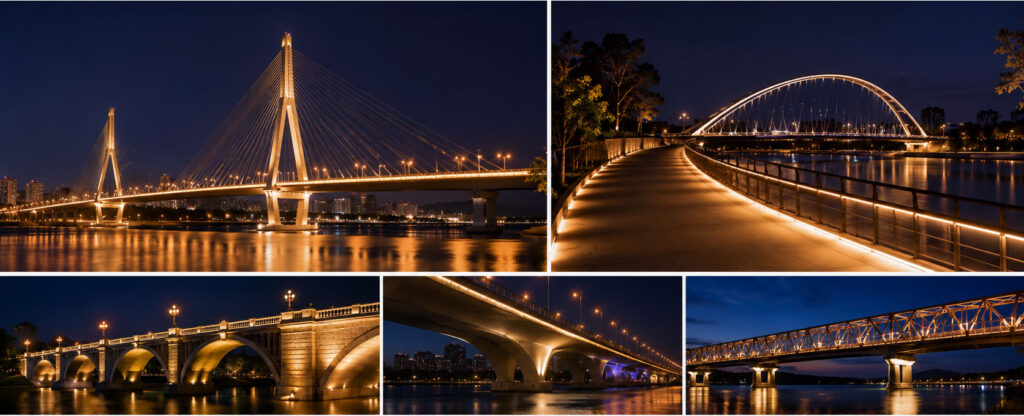

uPowerTek offers high-performance 0.1% deep dimming LED drivers designed for high-end architectural applications, including hospitality, galleries, museums, and premium facades. The BLD series covers output power from 30W to 200W, delivering ultra-smooth, flicker-free dimming down to the absolute low-end limits. Fully compatible with mainstream smart lighting protocols such as DALI-2, DMX/RDM, 0-10V, and PWM, these drivers provide lighting designers with precise control and industrial-grade reliability.

Product Features

  • Supply Voltage: 180-305Vac, 380Vac for 2 hours
  • Isolated 0-10V/PWM/Time/DALI2.0/ DMX/RDM Dimmable
  • Great Surge Immunity 10kV
  • Dim Off with 0.5W Standby Power
  • 0.1% Minimum Dimming Level
  • 12V 300mA Auxiliary Power to Power Controllers and Fans (Optional)
  • AirsetTM NFC Programmability
  • Global Certified Model Available
  • AirsetTM NFC Programmability
  • +/-3% Output Current Accuracy

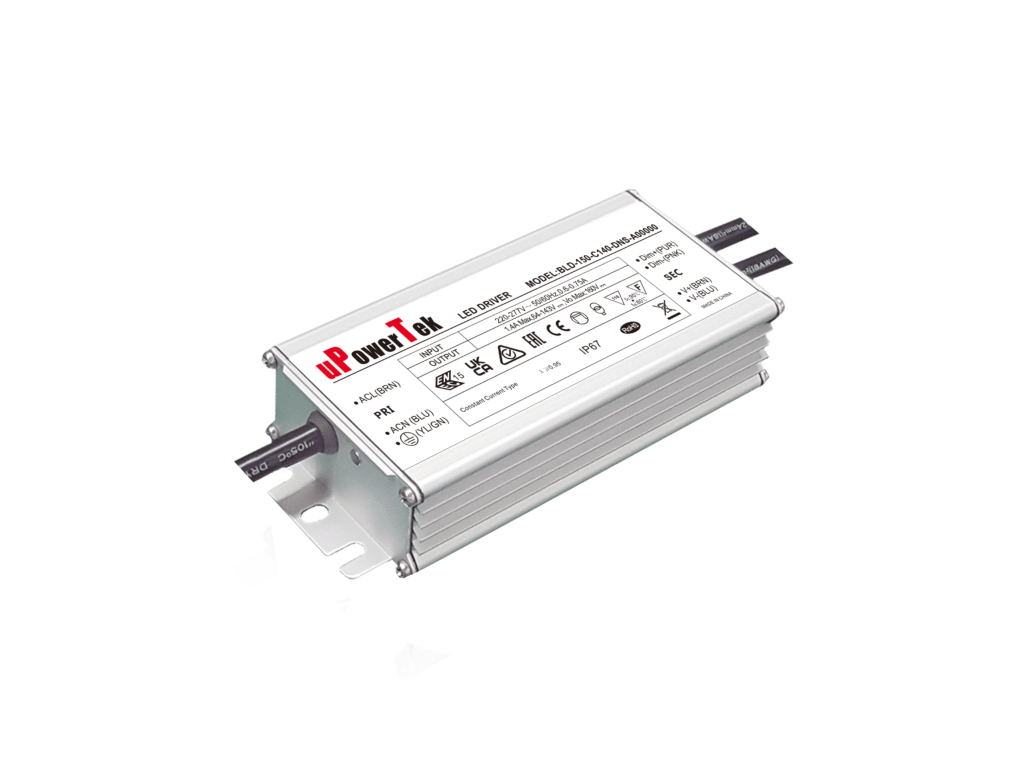

BLD Series

0.1% Deep Dimming LED Drivers

0.1% dimming

0.1% Deep Dimming LED Drivers

Download Datasheet
bld 096 c

40W 0.1% LED Driver

Model Number Output Power Output Current Output Voltage
BLD-040-C070-ARE-LD000040W500-700mA34-80Vdc
BLD-040-C105-ARE-LD000040W700-1050mA23-57Vdc
BLD-040-C140-ARE-LD000040W1050-1400mA17-38Vdc
bld 096 c

60W 0.1% LED Driver

Model Number Output Power Output Current Output Voltage
BLD-060-C105-ARS-LD000060W700-1050mA34-86Vdc
BLD-060-C140-ARS-LD000060W1050-1400mA 26-57Vdc
BLD-060-C210-ARS-LD000060W1400-2100mA17-43Vdc
bld 075 c

75W 0.1% LED Driver

Model Number Output Power Output Current Output Voltage
BLD-075-C050-ARS-LD000075W350-500mA90-214Vdc
BLD-075-C070-ARS-LD000075W500-700mA64-150Vdc
BLD-075-C105-ARS-LD000075W700-1050mA43-107Vdc
BLD-075-C140-ARS-LD000075W1050-1400mA32-71Vdc
BLD-075-C210-ARS-LD000075W1400-2100mA 21-54Vdc
BLD-075-C280-ARS-LD000075W2100-2800mA16-36Vdc
bld 096 c

96W 0.1% LED Driver

Model Number Output Power Output Current Output Voltage
BLD-096-C070-ARS-LD000096W500-700mA82-192Vdc
BLD-096-C105-ARS-LD000096W700-1050mA55-137Vdc
BLD-096-C140-ARS-LD000096W1050-1400mA41-91Vdc
BLD-096-C210-ARS-LD000096W1400-2100mA27-69Vdc
BLD-096-C280-ARS-LD000096W2100-2800mA21-46Vdc
bld 096 c

120W 0.1% LED Driver

Model Number Output Power Output Current Output Voltage
BLD-120-C105-ARS-LD0000120W700-1050mA69-171Vdc
BLD-120-C140-ARS-LD0000120W1050-1400mA 51-114Vdc
BLD-120-C280-ARS-LD0000120W2100-2800mA26-57Vdc
bld 240 c

150W 0.1% LED Driver

Model Number Output Power Output Current Output Voltage
BLD-150-C105-ARS-LD0000150W1050-1400mA107-238Vdc
BLD-150-C140-ARS-LD0000150W1400-2100mA 71-179Vdc
BLD-150-C210-ARS-LD0000150W2100-2800mA50-114Vdc
BLD-150-C280-ARS-LD0000150W2800-4200mA36-89Vdc
bld 320 c

200W 0.1% LED Driver

Model Number Output Power Output Current Output Voltage
BLD-200-C105-ARS-LD0000200W700-1050mA114-286Vdc
BLD-200-C140-ARS-LD0000200W1050-1400mA86-190Vdc
BLD-200-C210-ARS-LD0000200W1400-2100mA57-143Vdc
Title
BLD-040-C -LD0000 Rev A.pdf
1 file(s) 1 download

40W

 May 28, 2026 Download
BLD-060-C -LD0000 Rev A.pdf
1 file(s) 1 download

60W

 May 28, 2026 Download
BLD-075-C -LD0000 Rev A.pdf
1 file(s) download

75W

 May 28, 2026 Download
BLD-096-C -LD0000 Rev A.pdf
1 file(s) 1 download

96W

 May 28, 2026 Download
BLD-120-C -LD0000 Rev B.pdf
1 file(s) download

120W

 May 28, 2026 Download
BLD-150-C -LD0000 Rev B.pdf
1 file(s) download

150W

 May 28, 2026 Download
BLD-200-C -LD0000 Rev A.pdf
1 file(s) download

200W

 May 28, 2026 Download
