uPowerTek SLK Series 500W-1200W LED Driver UL Certified

slk ul class p

Table of Contents

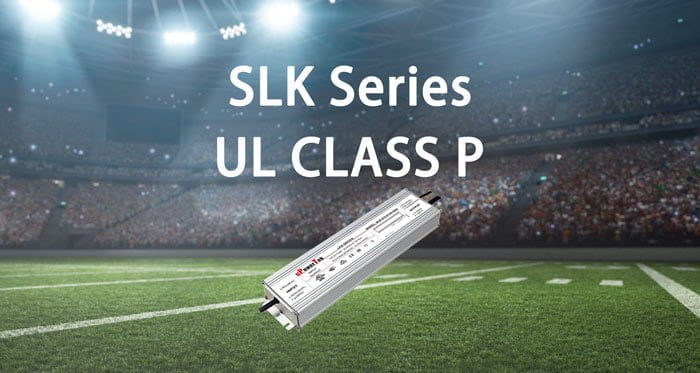

Oct, 2022, uPowerTek announces that SLK series 500W-1200W non-isolated LED driver has been certified with UL class P. This new series is representing the top-level design in this industry and will be applied in grow lighting and various industrial lighting high-power luminaires.

slk ul certificate 800

SLK series has the non-isolated design. And it has a high input voltage range of 200-480Vac, ensuring it can be adapted to high input voltage applications. With its compact size, low inrush current and high-efficiency design, it supports 0-10V, DALI-2 and DMX512 dimming, and NFC programming by which users could program the output current without connecting wires or powering on the driver.

球场灯 3

uPowerTek also launched slim-line version for horticultural lighting, the width is only 90mm, and it can be built inside a slim driver box, which can make the lamps look better and better for packing.

植物灯 3

Benefits of Non-isolated LED Drivers

  • Save up to 20% to 30% LED driver cost
  • High efficiency up to 97%
  • Compact non-isolated LED driver saves space
  • The lamp gets lighter to save transport and packing cost
  • The lamp gets more competitive
benefits

Product Range

bld 400 c

200-480Vac Input, 500W to 1200W Output

Model NumberInput VoltageOutput Power
SLK-600-C150-XYZ-HV0000180~528Vac600 W
SLK-610-C150-XYZ-HV0000180~528Vac610 W
SLK-800-C200-XYZ- HV0000180~528Vac800 W
SLK-810-C200-XYZ-HV0000180~528Vac810 W
SLK-1K0-C250-XYZ- HV0000180~528Vac1000 W
SLK-1K1-C250-XYZ- HV0000180~528Vac1000 W
SLK-1K2-C300-XYZ- HV0000180~528Vac1200 W
SLK-1K3-C300-XYZ- HV0000180~528Vac1200 W

Product Features

  • Absolute Supply Voltage: 180-440Vac
  • 97% Efficiency Max.
  • Non-isolated Design
  • Output Cable with Ground Wire (Optional)
  • Low Inrush Current
  • 100,000Hour Life @ Tc=75℃
  • 7 Year Warranty @ Tc<=75℃
  • AirsetTM NFC Programmability
  • +/-2% Output Current Accuracy
  • Isolated 0-10V/PWM/Time/DALI2.0 Dimmable
  • Glow-free Dim Off
  • 12V 300mA Auxiliary Power to Power Controllers and Fans
  • UL Class P, ENEC/CB/RCM
  • Global Certified Model Available
  • Safety according to EN 61347-1,, 61347-2-13, 62384



Download the datasheet to know more about the products.
